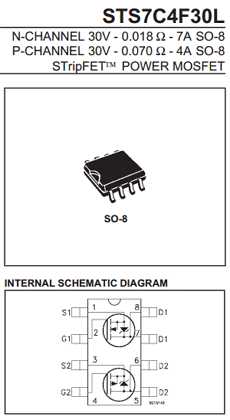

Part Number : STS7C4F30L

Function : STripFET POWER MOSFET ( STripFETPOWER MOSFET, P-CHANNEL )

Manufacturer : STMicroelectronics

Pinout :

Description

This Power MOSFET is the latest development of STMicroelectronis unique ”Single Feature Size strip-based process.

The resulting transistor shows extremely high packing density for low on resistance, rugged avalanche characteristics and less critical alignment steps therefore a remark able manufacturing reproducibility.



■ TYPICAL RDS(on) (N-Channel) = 0.018Ω

■ TYPICAL RDS(on) (P-Channel) = 0.070Ω

■ STANDARD OUTLINE FOR EASY AUTOMATED SURFACE MOUNT ASSEMBLY

■ LOW THRESHOLD DRIVE

Datasheet PDF Download

Other datasheets in the file :
S7C4F30L,STS7C4F30L
