Part Number : KA8301L
Function : Bi-Directional DC Motor Driver
Manufacturer : Fairchild Semiconductor

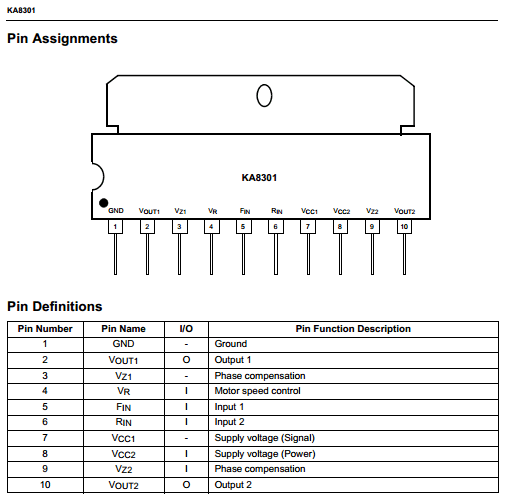

Pinout :
Description
The KA8301 is a monolithic integrated circuit designed for driving bi-directional DC motor with braking and speed control, and it is suitable for the loading motor driver of VCR systems. The speed control can be achieved by adjusting the external voltage of the speed control pin.
Datasheet PDF Download
Other datasheets in the file :
KA8301,KA8301-L,KA8301L
