Part Number : K2983
Function : MOS FIELD EFFECT TRANSISTOR / 2SK2983, 2SK2983-S, 2SK2983-ZJ
Manufacturer : Renesas Electronics

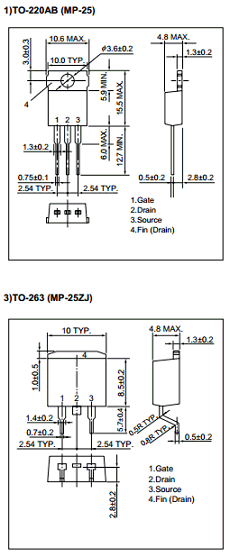

Pinout :
Description
The 2SK2983 is N-Channel MOS Field Effect Transistor designed for high current switching application.
FEATURES
• Low on-resistance
RDS(on)1= 20 mΩ MAX. (VGS= 10 V, ID= 15 A)
RDS(on)2= 27 mΩ MAX. (VGS= 4.5 V, ID= 15 A)
• Low CissCiss= 1300 pF TYP.
• Built-in gate protection diode
Datasheet PDF Download
Other datasheets in the file :
2SK2983,2SK2983-S,2SK2983-ZJ,K2983,K2983-S
