Part Number : 2N3716
Function : Silicon NPN power transistor / TO-3 Package
Manufacturer : Motorola => Freescale

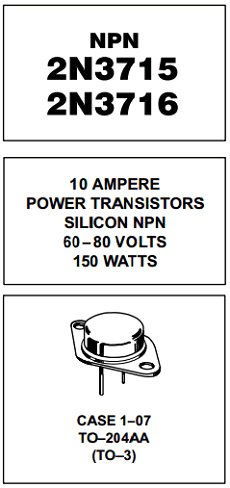

Pinout :

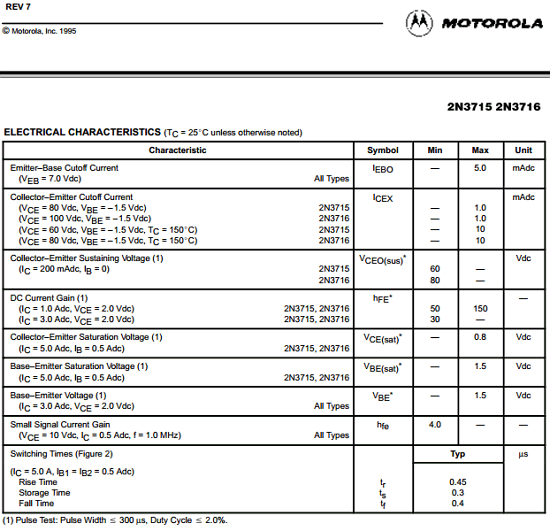

Description
• Total Switching Time at 3 A typically 1.15 µs
• Gain Ranges Specified at 1 A and 3 A
• Low VCE(sat): typically 0.5 V at IC= 5 A and IB= 0.5 A
• Excellent Safe Operating Areas
• Complement to 2N3791–92
Datasheet PDF Download
Other datasheets in the file :
2N3715,2N3716
