Part Number : ZXLD1360
Function : 30V 1A LED DRIVER with AEC-Q100 / TSOT23-5 Package
Manufacturer : Diodes Incorporated.

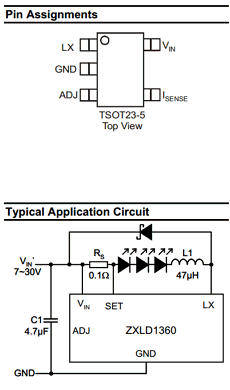

Pinout :
Description
The ZXLD1360 is a continuous mode inductive step-down converter with integrated switch and high side current sense.
It operates from an input supply from 7V to 30V driving single or multiple series connected LEDs efficiently externally adjustable output current up to 1mA.
The ZXLD1360 has been qualified to AEC-Q100 Grade 1 enabling operation in ambient temperatures from -40°C to 125°C.
Datasheet PDF Download
Other datasheets in the file :
ZXLD1360,ZXLD1360ET5TA
