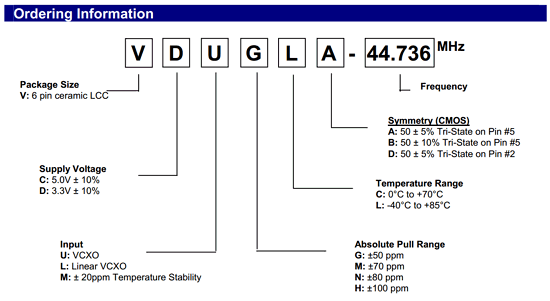

Part Number : VDUGLA44.736
Function : Voltage Controlled Crystal Oscillator / V-Type
Manufacturer : Vectron International
Pinout :
Description
• Output frequencies to 80.000 MHz
• 5.0 or 3.3 V operation
•Tri-State Output
• Low jitter < 6ps rms
• VCXO with CMOS outputs
• APR to 100 ppm
• 0/70 or –40/85 °C temperature range
• Hermetically sealed ceramic SMD package
Vectron’s V-Type Voltage Controlled Crystal Oscillator (VCXO) is a quartz stabilized square wave generator with a CMOS output and is tested at CMOS and TTL (5.0 volt operation) logic levels.
The V-Type’s small footprint and low profile make it ideally suitable for PCMCIA applications as well as any other where size is limited but performance is required.
Datasheet PDF Download
Other datasheets in the file :
VDUGLA-42.628,VDUGLA-42.628MHZ,VDUGLA-44.736,VDUGLA-44.736MHZ,VDUGLA42.628MHZ
