Part Number : UCLAMP3301H
Function : Low Voltage μClamp for ESD and CDE Protection
Manufacturer : Semtech Corporation
Pinout :
Description
Transient protection for data lines to
IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
IEC 61000-4-4 (EFT) 40A (tp = 5/50ns)
Cable Discharge Event (CDE)
Small SOD-523 package
Protects one data line
Low clamping voltage
Working voltage: 3.3V
Low leakage current
Solid-state silicon-avalanche technology
Datasheet PDF Download
Other datasheets in the file :

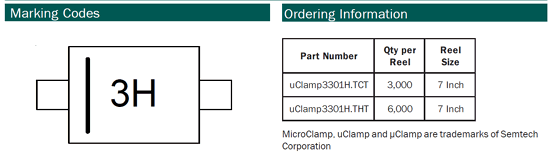

UCLAMP3301H,uClamp3301H.TCT,uClamp3301H.THT
