Part Number : TSOP4830
Function : IR Receiver Modules for Remote Control Systems
Manufacturer : Vishay Semiconductors

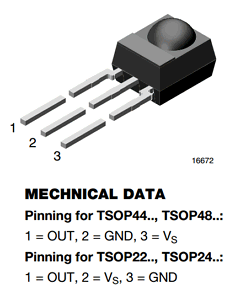

Pinout :
Description
The TSOP22.., TSOP48.., TSOP24.. and TSOP44.. series are miniaturized IR receiver modules for infrared remote control systems. A PIN diode and a preamplifier are assembled on lead frame, the epoxy package contains an IR filter.
The demodulated output signal can be directly connected to a microprocessor for decoding.
Datasheet PDF Download
Other datasheets in the file :
TSOP22,TSOP2230,TSOP2233,TSOP2236,TSOP2238
