Part Number : TSA5527T
Function : 1.3 GHz universal bus-controlled TV synthesizer.
Manufacturer : Philips Electronics
Pinout :
Description
The device is a single-chip PLL frequency synthesizer designed for TV and VCR tuning systems.

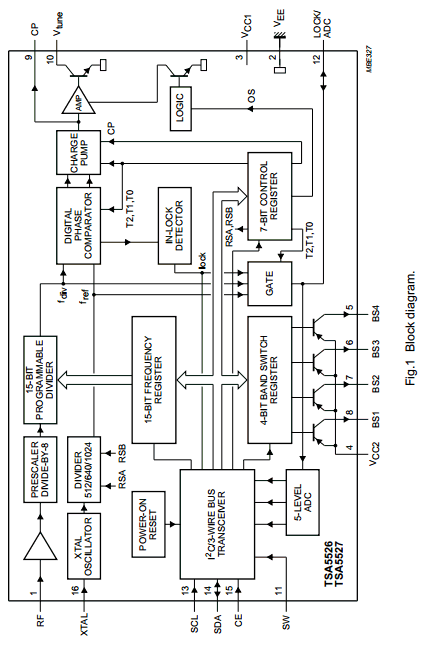

The circuit consists of a divide-by-eight prescaler with its own preamplifier, a 15-bit programmable divider, a crystal oscillator and its programmable reference divider and a phase/frequency detector combined with a charge-pump which drives the tuning amplifier and the 33 V output.
Four high-current PNP band switch buffers are provided for band switching. Two PNP buffers can be switched on simultaneously. The sum of the collector currents is limited to 50 mA.
Datasheet PDF Download
Other datasheets in the file :
TSA5526,TSA5526AM,TSA5526AT,TSA5526M,TSA5526T
