Part Number : TSA1001
Function : 10-BIT, 25MSPS, 35mW A/D CONVERTER / TQFP48 Package.
Manufacturer : STMicroelectronics

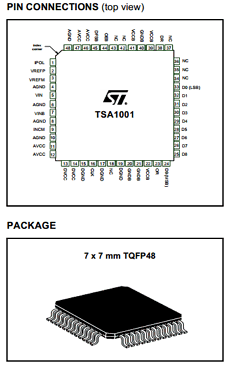

Pinout :
Description
The TSA1001 is a 10-bit, 25Msps sampling frequency Analog to Digital converter using a CMOS technology combining high performances and very low power consumption.
The TSA1001 is based on a pipeline structure and digital error correction to provide excellent static linearity and achieve 9.7 effective bits at Fs=25Msps, and Fin=5MHz.
Especially designed for portable applications, the TSA1001 only dissipates 35mW at 25Msps. When running at lower sampling frequencies, even lower consumption can be achieved.
Datasheet PDF Download
Other datasheets in the file :
EVAL1001/AA,SA1001C,SA1001I,TSA1001,TSA1001CF
