Part Number : TRF3722
Function :TRF3722 Quadrature Modulator with Integrated PLL and VCO / VQFN (48) Package
Manufacturer : Texas Instruments
Pinout :
Description

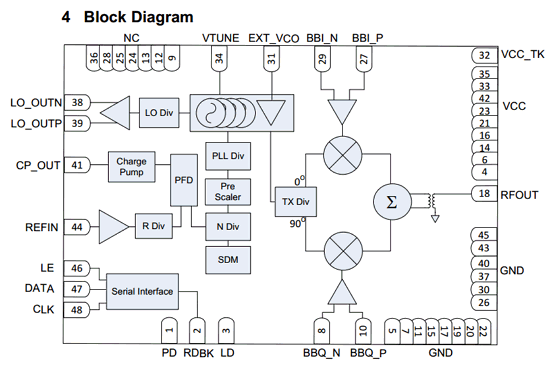

TRF3722 is a high performance direct conversion quadrature modulator with exceptional linearity and low noise performance. The typical 0.25 V baseband common mode voltage supports seamless interface with current source DACs. The device integrates the PLL and VCO to provide the local oscillator (LO) to the modulator.
Datasheet PDF Download
Other datasheets in the file : TRF3722, TRF3722IRGZ, TRF3722IRGZR, TRF3722IRGZT
