Part Number : TPS65131-Q1
Function : Automotive Catalog Dual Positive and Negative Outputs (1800mA) / VQFN (24) Package
Manufacturer : Texas Instruments

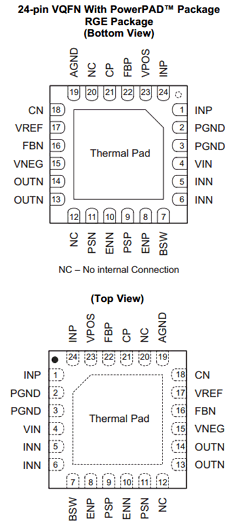

Pinout :
Description
The TPS65131-Q1 device is dual-output dc-dc converter generating a positive output voltage up to 15 V and a negative output voltage down to –15 V with output currents of typically 200 mA, depending on input-voltage to output-voltage ratio.
With a total efficiency up to 85%, the device is ideal for portable battery-powered equipment. The input-voltage range of 2.7 V to 5.5 V allows, for example, 3.3-V and 5-V rails to power the TPS65131-Q1 device. The TPS65131-Q1 device comes in a QFN-24 package with thermal pad. Requiring few and small external components, the overall solution size can be small.
Datasheet PDF Download
Other datasheets in the file :
2U65131,TPS65131,TPS65131-Q1,TPS65131TRGERQ1
