Part Number : TIP3055
Function : Complementary Power Transistors / 15 Ampere 60 Volts 90 Watts
Manufacturer : Unspecified

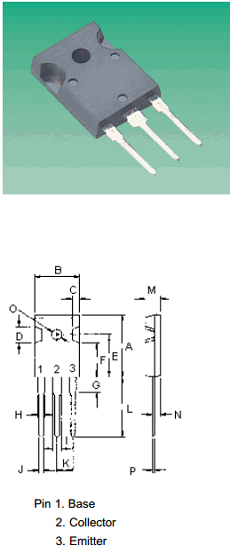

Pinout :
Description
Complementary Silicon Power Transistors are designed for use in general purpose power amplifier and switching applications.
Features:
• Power Dissipation-PD= 90W at TC= 25°C.
• DC Current Gain hFE = 20 ~ 100 at IC= 4.0A.
• VCE(sat) = 1.1V (Maximum) at IC= 4.0A, IB= 400mA.
Datasheet PDF Download
Other datasheets in the file :
TIP2955,TIP3055
