SPP04N60C3 Schematic

Part Number : SPP04N60C3

Function :Cool MOS Power Transistor – 650V, 0.95Ohm, 4.5A

Manufacturer : Infineon Technologies

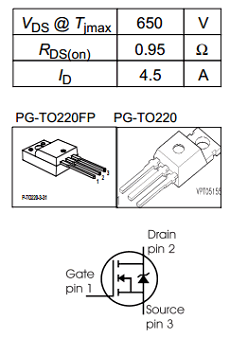

Pinout :
SPP04N60C3 datasheet

Description

* New revolutionary high voltage technology

* Ultra low gate charge

* Peridic avalanche rated

* Extreme dv/dt rated

* High peak current capability

* Improved transconductance

* PG-TO-220-3-31;-3-1111: Fully isolated package (2500 VAC : 1 minute).

Datasheet PDF Download

SPP04N60C3 pdf

Other datasheets in the file : 04N60C3, O4N60C3, Q67040-S4366, SP000216299, SPA04N60C3
