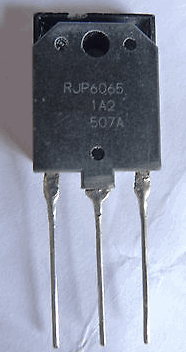

Part Number : RJP6065DPM
Function : Silicon N Channel IGBT High Speed Power Switching / TO-3PFM Package
Manufacturer : Renesas Electronics
Pinout :
Description
* Low collector to emitter saturation voltage
VCE(sat)= 1.8 V typ. (IC= 40 A, VGE= 15V, Ta = 25°C)
* Gate to emitter voltage rating 30 V
* Pb-free lead plating and chip bonding
