Part Number : PS2501-1
Function : PHOTOCOUPLER
Manufacturer : NEC => Renesas Technology

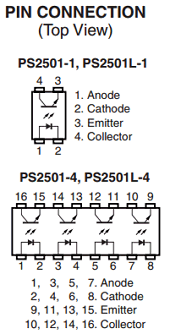

Pinout :
Description
DESCRIPTION
The PS2501-1, -4 and PS2501L-1, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor.
The PS2501-1, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -4are lead bending type (Gull wing) for surface mount.
FEATURES
• High isolation voltage (BV = 5 000 Vr.m.s.)
• High collector to emitter voltage (VCEO= 80 V)
• High-speed switching (tr= 3 μs TYP., tf= 5 μs TYP.)
• Ordering number of tape product: PS2501L-1-F3: 2 000 pcs/reel
• Safety standards
• UL approved: No. E72422
