Part Number : P7NK80ZFP
Function : STP7NK80ZFP, P7NK80ZFP / N-channel 800 V, 1.5 Ohm, 5.2 A
Manufacturer : STMicroelectronics
Pinout :
Description
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications.
Such series complements ST full range of high voltage Power MOSFETs including revolutionary MDmesh™ products.
Datasheet PDF Download

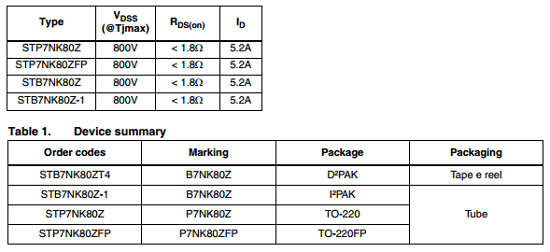

Other datasheets in the file :
B7NK80Z,P7NK80Z,P7NK80ZFP,STB7NK80Z,STB7NK80Z-1
