Part Number : MX612
Function : DC motor drive circuit
Manufacturer : Unspecified

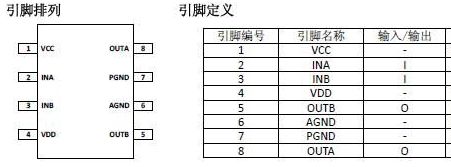

Pinout :
Description
The product is a battery-powered toys, low voltage or battery-powered motion control application provides an integrated brush DC motor drive solutions.
Circuit within the integrated circuit using N-channel H-bridge driver and P-channel power MOSFET design, suitable for driving brush DC motor or drive a stepper motor windings.
The circuit includes a wide operating voltage range (from 2V to 9.6V), the maximum continuous output current up to 1.2A, maximum peak output current of 2.5A.
