Part Number : MURS105T3G
Function : Surface Mount Ultrafast Power Rectifiers
Manufacturer : ON Semiconductor

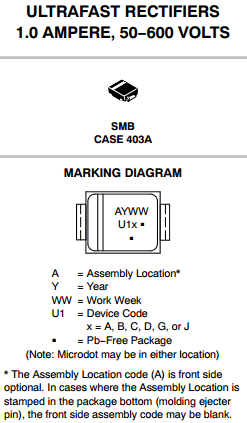

Pinout :
Description
Ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.
Features
•Small Compact Surface Mountable Package with J−Bend Leads
•Rectangular Package for Automated Handling
•High Temperature Glass Passivated Junction
•Low Forward Voltage Drop (0.71 to 1.05 V Max @ 1.0 A, TJ= 150°C)
•AEC−Q101 Qualified and PPAP Capable
•SURS8 Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
•These are Pb−Free Packages
Mechanical Characteristics:
•Case: Epoxy, Molded
•Weight: 95 mg (Approximately)
•Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
•Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
•Polarity: Polarity Band Indicates Cathode Lead
•ESD Rating:
♦Human Body Model = 3B (> 8 kV)
♦Machine Model = C (> 400 V)
