Part Number : MOC3021
Function :6-pin DIP random-phase optoisolators triac driver output
Manufacturer : Motorola => Freescale

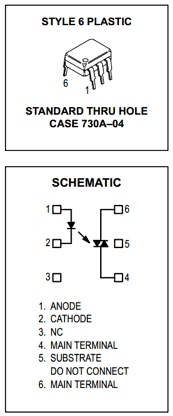

Pinout :
Description
The MOC3020 Seriesconsists of gallium arsenide infrared emitting diodes, optically coupled to a silicon bilateral switch.
• To order devices that are tested and marked per VDE 0884 requirements, the suffix ”V” must be included at end of part number. VDE 0884 is a test option.
They are designed for applications requiring isolated triac triggering.
Recommended for 115/240 Vac(rms) Applications:
• Solenoid/Valve Controls
• Static ac Power Switch
• Lamp Ballasts • Solid State Relays
• Interfacing Microprocessors to 115 Vac Peripherals
• Incandescent Lamp Dimmers
• Motor Controls
Datasheet PDF Download
Other datasheets in the file :
MOC3021, MOC3022, MOC3023
