Part Number : MMBT4126
Function : 25V; 200mA PNP small signal surface mount transistor. Ideal for medium power amplification and switching
Manufacturer : Diodes Incorporated.

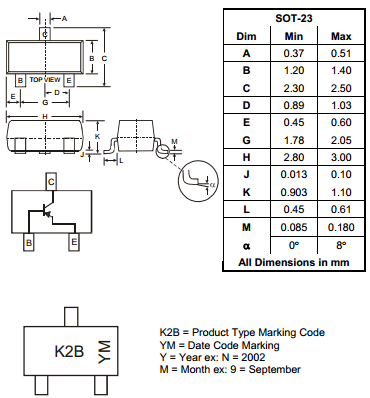

Pinout :
Description
Features
• Epitaxial Planar Die Construction
• Complementary NPN Type Available (MMBT4124)
• Ideal for Low Power Amplification and Switching
• Lead, Halogen and Antimony Free, RoHS Compliant “Green” Device
Mechanical Data
• Case: SOT-23
• Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
• Moisture Sensitivity: Level 1 per J-STD-020C
• Terminal Connections: See Diagram
• Terminals: Solderable per MIL-STD-202, Method 208
• Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).
• Weight: 0.008 grams (approximate)
Datasheet PDF Download
Other datasheets in the file :
MMBT4126,MMBT4126-7-F
