Part Number : MCT2
Function : OPTOCOUPLERS / COMPATIBLE WITH STANDARD TTL INTEGRATED CIRCUITS
Manufacturer : Texas Instruments
Pinout :
Description
* Gallium Arsenide Diode Infrared Source Optically Coupled to a Silicon npn Phototransistor
* High Direct-Current Transfer Ratio
* Base Lead Provided for Conventional Transistor Biasing
* High-Voltage Electrical Isolation . . .1.5-kV, or 3.55-kV Rating
* Plastic Dual-In-Line Package

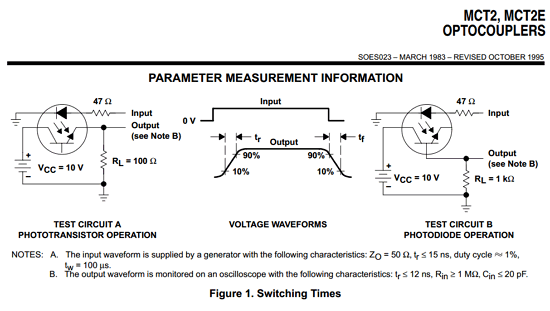

* High-Speed Switching
Datasheet PDF Download
Other datasheets in the file :
MCT2,MCT2E
