Part Number : MC33304DR2
Function : Low Voltage Rail-to-Rail, Sleepmode Operational Amplifier
Manufacturer : ON Semiconductor

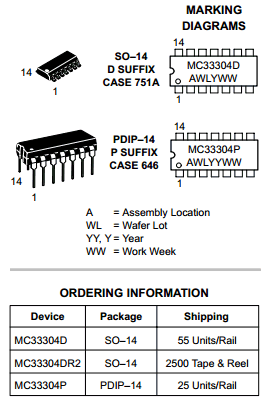

Pinout :
Description
The MC33304 is a monolithic bipolar operational amplifier. This low voltage rail–to–rail amplifier has both a rail–to–rail input and output stage, with high output current capability. This amplifier also employs Sleep–Mode technology. In sleepmode, the micropower amplifier is active and waiting for an input signal. When a signal is applied, causing the amplifier to source or sink ≥200 µA (typically) to the load, it will automatically switch to the awakemode (supplying up to 70 mA to the load). When the output current drops below 90 µA, the amplifier automatically returns to the sleepmode.
Datasheet PDF Download
Other datasheets in the file :
MC33304D,MC33304DR2,MC33304P
