Part Number : LTC5800-WHM
Function : SmartMesh WirelessHART Mote-on-Chip / 72-Lead (10mm × 10mm × 0.85mm) Plastic QFN
Manufacturer : Linear Technology

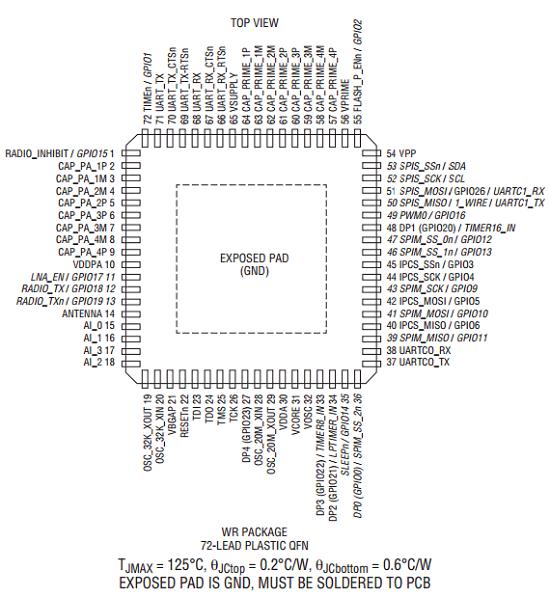

Pinout :
Description
SmartMesh WirelessHART wireless sensor networks are self managing, low power networks built from wireless nodes called motes. The LTC5800-WHMis the WirelessHART Mote-on-Chip integrated circuit in the Eterna * family of IEEE802.15.4 System-on-Chip(SoC) solutions, featuring a highly integrated, low power radio design by Dust Networks as well as an ARM Cortex-M3 32-bit microprocessor running Dust’s embedded SmartMesh WirelessHART networking software.
The LTC5800-WHM SoC features an on-chip power amplifier(PA) and transceiver, requiring only power supply decoupling, crystals, and antenna with matching circuitry to create a complete wireless node.
Datasheet PDF Download
Other datasheets in the file :
LTC5800-WHM,LTC5800WR,LTC5800WR-WHMA,LTC5800WRWHMA
