Part Number : LT3652
Function : Power Tracking 2A Battery Charger
Manufacturer : Linear Technology

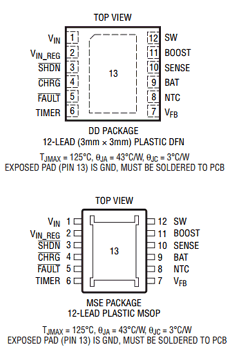

Pinout :
Description
The LT3652 is a complete monolithic step-down battery charger that operates over a 4.95V to 32V input voltage range.
The LT3652 provides a constant-current/constant-voltage charge characteristic, with maximum charge current externally programmable up to 2A.
The charger employs a 3.3V float voltage feedback reference, so any desired battery float voltage up to 14.4V can be programmed with a resistor divider.
Datasheet PDF Download
Other datasheets in the file :
LT3652,LT3652EDD,LT3652EDD#PBF,LT3652EMSE,LT3652EMSE#PBF
