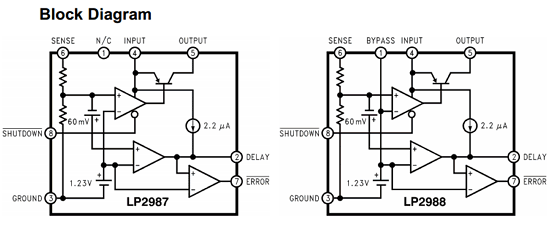

LP2988AIM-5.0 Schematic

Part Number : LP2988AIM-5.0

Function :LP2987/LP2988 Micropower, 200 mA Ultra Low-Dropout Voltage Regulator

Manufacturer : Texas Instruments

Pinout :
LP2988AIM-5.0 datasheet

Description

The LP2987/8 are fixed-output 200 mA precision LDO voltage regulators with power-ON reset delay which can be implemented using a single external capacitor.

The LP2988 is specifically designed for noise-critical applications. A single external capacitor connected to the Bypass pin reduces regulator output noise.

Datasheet PDF Download

LP2988AIM-5.0 pdf

Other datasheets in the file : LP2987AILD-3.0, LP2987AILD-3.0/NOPB, LP2987AILD-5.0, LP2987AILD-5.0/NOPB, LP2987AILDX-5.0
Datasheet PDF
