Part Number : LMX9838
Function : LMX9838 Bluetooth Serial Port Module / Compact Size: 10mm x 17mm x 2.0mm
Manufacturer : Texas Instruments
Pinout :
Description

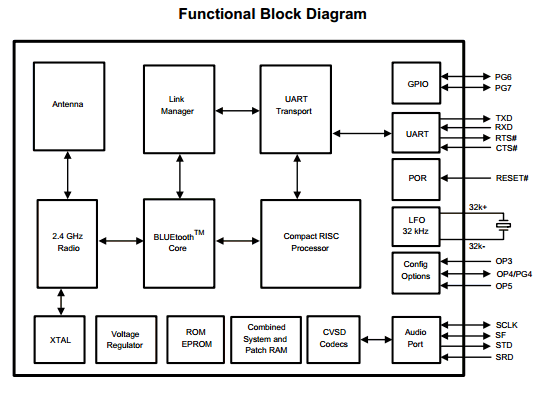

The Texas Instruments LMX9838 Bluetooth Serial Port module is a fully integrated Bluetooth 2.0 baseband controller, 2.4 GHz radio, crystal, antenna, LDO and discreets; combined to form a complete small form factor (10 mm x 17 mm x 2.0 mm) Bluetooth node.
All hardware and firmware is included to provide a complete solution from antenna through the complete lower and upper layers of the Bluetooth stack, up to the application including the Generic Access Profile (GAP), the Service Discovery Application Profile (SDAP), and the Serial Port Profile (SPP).
The module includes a configurable service database to fulfil service requests for additional profiles on the host. Moreover, the LMX9838 is qualified as a Bluetooth endproduct, ready to be used in the end application without additional testing and license cost.
Datasheet PDF Download
Other datasheets in the file :
LMX9838,LMX9838SB,LMX9838SB/NOPB,LMX9838SBX,LMX9838SBX/NOPB
