Part Number : LM8502
Function : LM8502 Intelligent Lighting Management Unit That Fuses a 1.2A Dual High-Side Flash LED Driver
Manufacturer : Texas Instruments

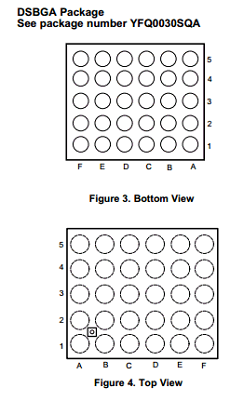

Pinout :
Description
The LM8502 is a versatile LED driver suitable for multiple applications. It includes a 2MHz, fixed frequency synchronous boost converter, 10 current sink LED outputs, 2 outputs for flash or haptic applications, ambient light sensing and PWM input.
The 10 current sink LED outputs offer individual current control through an I2C-compatible interface.
Current can be accurately controlled with a full-scale setting and 8-bit current control. The LM8502 also enables LED control with group faders and lighting engines. Group faders enable single I2C register writes for multiple LED outputs with fading, whereas lighting engines with SRAM memory enable engine driven lighting sequences. Each LED output can be powered either from V OUT or an external voltage supply.
Datasheet PDF Download
Other datasheets in the file :
8502,LM8502,LM8502TME,LM8502TME/NOPB,LM8502TMX
