Part Number : LM317
Function : 3-terminal 1.5A positive adjustable voltage from 1.3V to 37V regulator.
Manufacturer : STMicroelectronics

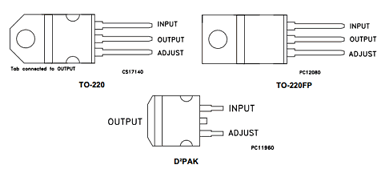

Pinout :
Description
The LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP and D²PAK
packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Datasheet PDF Download
Other datasheets in the file :
LM217,LM217D2T-TR,LM217T,LM217T-DG,LM317
