Part Number : LD33CV
Description
LD33CV IS LOW DROP FIXED AND ADJUSTABLE POSITIVE VOLTAGE REGULATORS.
This is the basic LD33CV voltage regulator, a low drop positive regulator with a 3.3V fixed output voltage. This fixed regulator provides a great amount of stability and protection for your project and with its on ship trimming this regulator is able to reach an output voltage tolerance within ±1%.

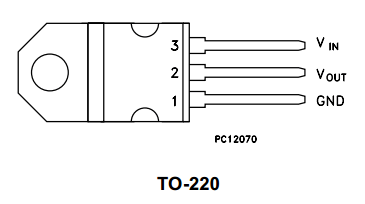

Pinout :
Features:
1. Output Voltage: 3.3V
2. Output Current: 800mA
3. Dropout Voltage: 1V
4. Internal Current and Thermal Limit
This is a LOW DROP Voltage Regulator able to provide up to 800mA of Output Current, available even in adjustable version (Vref=1.25V).
LD33CV Datasheet pdf
: Equivalent STLD33V, [ LD1117V33.PDF ]
Reference Site : https://www.sparkfun.com/products/526
