Part Number : LA7837
Function : Vertical deflection circuit with TV/CTR display drive
Manufacturer : SANYO -> Panasonic

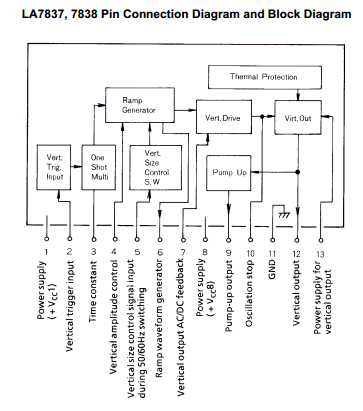

Pinout :
Description
The LA7837, 7838 are vertical deflection output ICs developed for use in high-grade TVs and displays.
The interlace and crossover distortion responses, in particular, have been greatly improved, allowing excellent picture quality on large size televisions and high precision interlace mode displays.
Datasheet PDF Download
Other datasheets in the file :
LA7837,LA7838
