Part Number : ISO7420FE
Function : Low-Power Dual Channel Digital Isolators
Manufacturer : Texas Instruments

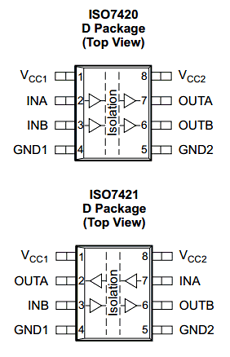

Pinout :
Description
ISO7420x and ISO7421x provide galvanic isolation up to 2500 V RMS for 1 minute per UL
and 4242 VPK per VDE.
These devices have two isolated channels. Each channel has a logic input and output buffer
separated by a silicon dioxide (SiO 2) insulation barrier.
Datasheet PDF Download
Other datasheets in the file :
ISO7420,ISO7420ED,ISO7420EDR,ISO7420FE,ISO7420FED
