Part Number : IR2520D
Function : ADAPTIVE BALLAST CONTROL IC / a small 8-pin DIP or SOIC package.
Manufacturer : International Rectifier

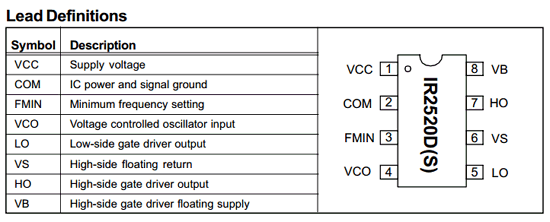

Pinout :
Description
The IR2520D(S) is a complete adaptive ballast controller and 600V half-bridge driver integrated into a single IC for fluorescent lighting applications. The IC includes adaptive zero-voltage switching (ZVS), internal crest factor over-current protection, as well as an integrated bootstrap FET.
The heart of this IC is a voltage controlled oscillator with externally programmable minimum frequency.
All of the necessary ballast features are integrated in a small 8-pin DIP or SOIC package.
Datasheet PDF Download
Other datasheets in the file :
IR2520D,IR2520DPbF,IR2520DS,IR2520DSPbF
