Part Number : IR2184S
Function : HALF-BRIDGE DRIVER
Manufacturer : International Rectifier

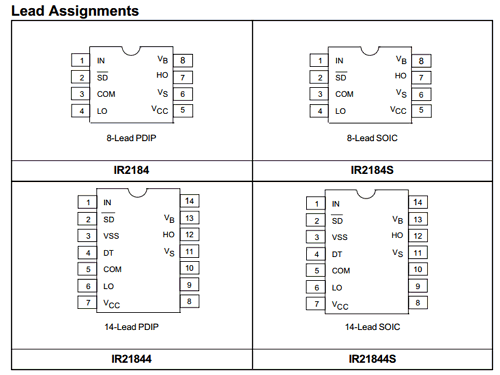

Pinout :
Description
The IR2184(4)(S) are high voltage, high speed power MOSFET and IGBT drivers with dependent high and low side referenced output channels.
Proprietary HVIC and latch immune CMOS technologies enable rugge dized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction.
The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high side configuration which operates up to 600 volts.
Datasheet PDF Download
Other datasheets in the file :
IR2184,IR21844,IR21844PbF,IR21844S,IR21844SPbF
