Part Number : HEF4519BP
Function : Quadruple 2-input multiplexer
Manufacturer : Philips Electronics
Pinout :
Description

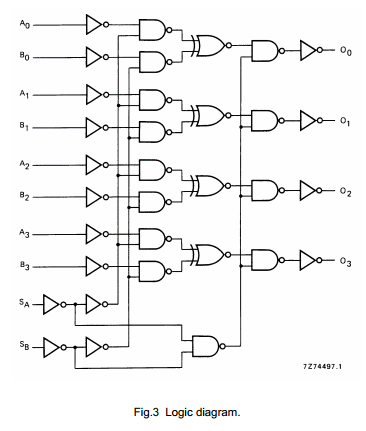

The HEF4519B provides four multiplexing circuits with common select inputs (SA, SB); each circuit contains two inputs (An, Bn) and one output (On). It may be used to select four bits of information from one of two sources.
The HEF4519B cannot be used to multiplex analogue signals. The outputs utilize standard buffers for best performance.
HEF4519BP(N): 16-lead DIL; plastic (SOT38-1)
HEF4519BD(F): 16-lead DIL; ceramic (cerdip) (SOT74)
HEF4519BT(D): 16-lead SO; plastic (SOT109-1)
Datasheet PDF Download
Other datasheets in the file :
HEF4519,HEF4519BD,HEF4519BDB,HEF4519BP,HEF4519BPB
