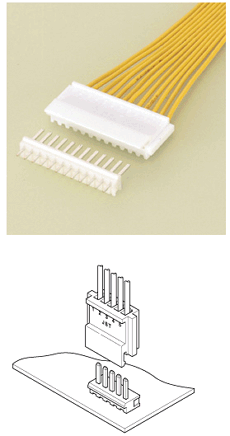

Part Number : H18P-SHF-AA
Function : 2.5mm pitch NH Connetector
Manufacturer : Unspecified
Pinout :
Description
Series : NH connector
Category : Wire to Board Crimp style Connectors
Type : Disconnectable type, Crimp style, With locking device
Pitch : 2.5 mm
Current rating : 3A (AWG#22)
Voltage rating : 250V
PC board mounting direction : Top entry, Side entry, Bottom entry
http://www.jst-mfg.com/product/detail_e.php?series=182
Datasheet PDF Download
Other datasheets in the file :
B10P-SHF-1AA,B11P-SHF-1AA,B12P-SHF-1AA,B13P-SHF-1AA,B14P-SHF-1AA
