Part Number : H11AG3
Function : Optocoupler. Phototransistor Output; AlGaAs Input
Manufacturer : QT Optoelectronics => Fairchildsemi

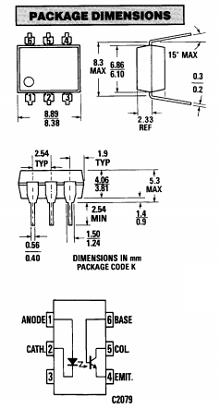

Pinout :
Description
The H11AG series consists of a gallium-aluminmu-arsenide infrared emitting diode coupled with a silicon phototransistor in a dual in-line package.
Datasheet PDF Download
Other datasheets in the file :
H11AG1,H11AG2,H11AG3
