Part Number : FDP2570
Function : 150V N-Channel PowerTrench
Manufacturer : Fairchild Semiconductor

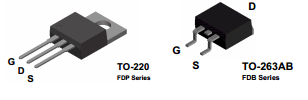

Pinout :
Description
General Description
This N-Channel MOSFET has been designed
specifically for switching on the primary side in the
isolated DC/DC converter application. Any application
requiring a 150V MOSFETs with low on-resistance and
fast switching will benefit.
These MOSFETs feature faster switching and lower
gate charge than other MOSFETs with comparable
RDS(ON)specifications.
The result is a MOSFET that is easy and safer to drive
(even at very high frequencies), and DC/DC power
supply designs with higher overall efficiency.
Features
• 22 A, 150 V. Rds(on)= 80 mΩ@ Vgs= 10V
Rds(on)= 90 mΩ@ Vgs= 6V
• Low gate charge (40nC typical)
• Fast switching speed
• High performance trench technology for extremely low Rds(on)
• 175°C maximum junction temperature rating
Datasheet PDF Download
Other datasheets in the file :
FDB2570,FDP2570
