Part Number : DM74LS75N
Function : Quad Latch / 16-Lead
Manufacturer : Fairchild Semiconductor
Pinout :
Description
These latches are ideally suited for use as temporary storage for binary information between processing units and input/output or indicator units.

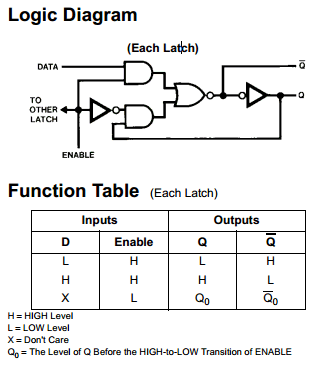

Information present at a data(D) input is transferred to the Q output when the enable is HIGH, and the Q output will follow the data input as long as the enable remains HIGH. When the enable goes LOW, the information (that was present at the data input at the time the transition occurred) is retained at the Q output until the enable is permitted to go HIGH.
Datasheet PDF Download
Other datasheets in the file :
74LS75,DM74LS75,DM74LS75M,DM74LS75N
