Part Number : DM74LS00
Function : Quad 2-Input NAND Gate
Manufacturer : Fairchild Semiconductor

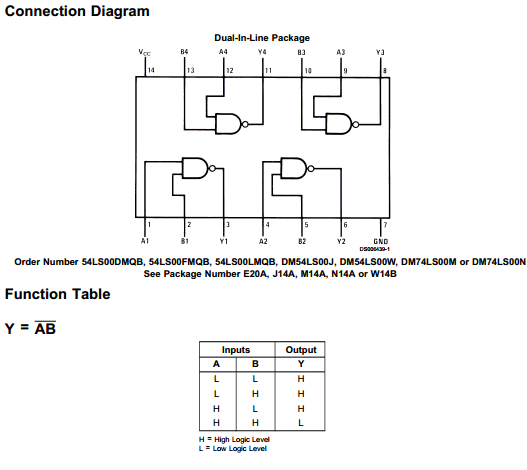

Pinout :
Description
This device contains four independent gates each of which performs the logic NAND function.
Alternate Military/Aerospace device (54LS00) is available. Contact a Fairchild Semiconductor Sales Office/Distributor for specifications.
Datasheet PDF Download
Other datasheets in the file :
DM7400CW,DM7400M,DM7400N,DM74AS00MX,DM74AS00N
