TT2206 – Vcbo=1600V, Vceo=800V, Ic=10A, Pc=65W

Posted on by

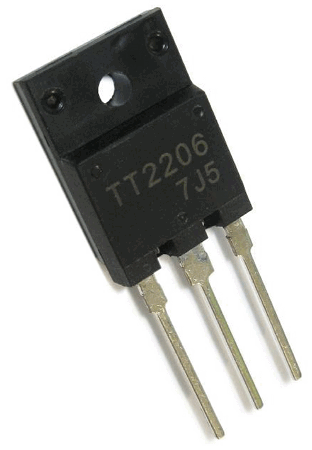

Part Number : TT2206

NPN Triple Diffused Planar Silicon Transistor.

Function is High Voltage Color Display Horizontal  Deflection Output.

Package : TO-3P MLH Type

TT2206

Features
1. High speed.
2. High breakdown voltage (Vcbo=1600V, Vceo=800V, Ic=10A, Pc=65W ).
3. High reliability (Adoption of HVP process).
4. Adoption of MBIT process.
5. On-chip damper diode.



The equivalent circuit  is 2SС5793, TT2202, JL6920, 2SC5446, FJAF6810, FJAF6820.

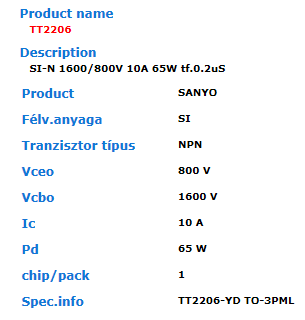

TT2206-Specifications
( TT2202 is Vcbo = 1500V, Vceo=800V )



Транзистор биполярный  (аналог 2SC5793)

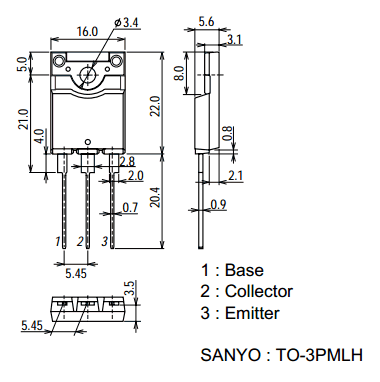

TT2206-Pinouts



Reference PDF :

#1 : Sanyo TT2202 datasheet pdf

#2 : Sanyo 2SC5793 datasheet pdf

#3 : Toshiba 2SC5446 datasheet pdf

#4 : Fairchild FJAF6810 datasheet pdf
