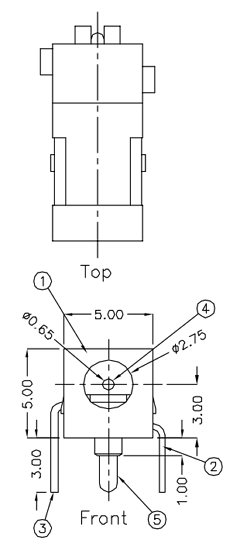

Part Number : CP-022-ND
Function :CONN PWR JACK 0.65X2.75MM
Manufacturer : Unspecified
Pinout :
Description
| Connector Type | Jack |
|---|---|
| Gender | Male |
| Plug/Mating Plug Diameter | 0.70mm ID, 2.35mm OD (EIAJ-1) |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts |
| Internal Switch(s) | Single Switch, Normally Closed |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Shielding | Unshielded |
| Features | – |
| Color | Black |
| Contact Material | Brass |
| Contact Material – Plating | Silver |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Operating Temperature | -25°C ~ 85°C |
| Voltage – Rated | 16VDC |
| Current Rating | 1A |
| Other Names | CP-022 |
Datasheet PDF Download
Other datasheets in the file : CP-022-ND,CP022ND
