Part Number : CDP1802AC
Function : High-Reliability CMOS 8-Bit Microprocessor / 40 Ld SBDIP Package
Manufacturer : Intersil

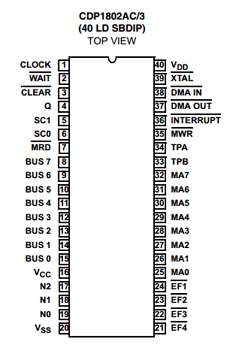

Pinout :
Description
The CDP1802A/3 High-Reliability LSI CMOS 8-bit register oriented Central-Processing Unit (CPU) is designed for use as a general purpose computing or control element in a wide range of stored-program systems or products.
The CDP1802A/3 includes all of the circuits required for fetching, interpreting, and executing instructions which have been stored in standard typesof memories. Extensive input/output (I/O) control features are also provided to facilitate system design.
Datasheet PDF Download
Other datasheets in the file :
CDP1802AC,CDP1802AC/3,CDP1802ACD3
