Part Number : C5198
Function : Silicon NPN Triple Diffused Type / Power Amplifier Applications
Manufacturer : Toshiba

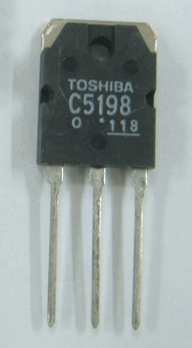

Pinout :
Description
• High breakdown voltage: VCEO= 140 V (min)
• Complementary to 2SA1941
• Suitable for use in 70-W high fidelity audio amplifier’s output stage

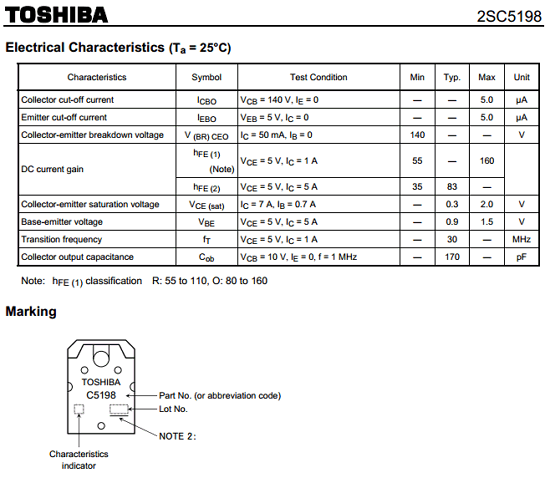

Datasheet PDF Download
Other datasheets in the file :
2SC5198,C5198
