Part Number : BUZ11
Function : 30A, 50V, 0.040 Ohm, N-Channel Power MOSFET
Manufacturer : Fairchild Semiconductor

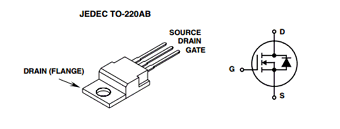

Pinout :
Description
N-Channel Power MOSFET 50V, 30A, 40 mΩ, This is an N-Channel enhancement mode silicon gate power field effect transistor designed for applications such as switching regulators, switching converters, motor drivers, relay drivers and drivers for high power bipolar switching transistors requiring high speed and low gate drive power. This type can be operated directly from integrated circuits.
Features
• 30A, 50V
• rDS(ON)= 0.040Ω
• SOA is Power Dissipation Limited
• Nanosecond Switching Speeds
• Linear Transfer Characteristics
• High Input Impedance
• Majority Carrier Device
• Related Literature
– TB334 “Guidelines for Soldering Surface Mount Components to PC Boards”
