Part Number : BD136
Function : Plastic Medium-Power Silicon PNP Transistors / TO-225 Package
Manufacturer : ON Semiconductor

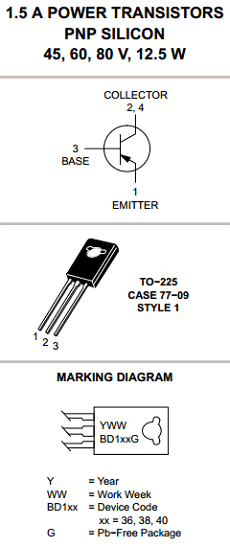

Pinout :
Description
This series of plastic, medium−power silicon PNP transistors are designed for use as audio amplifiers and drivers utilizing complementary or quasi complementary circuits.
• High DC Current Gain
• BD 136, 138, 140 are complementary with BD 135, 137, 139
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Datasheet PDF Download
Other datasheets in the file :
BD136,BD136G,BD138,BD138G,BD140
