Part Number : AT42QT1010
Function : Single-key QTouch Touch Sensor IC
Manufacturer : Atmel Corporation

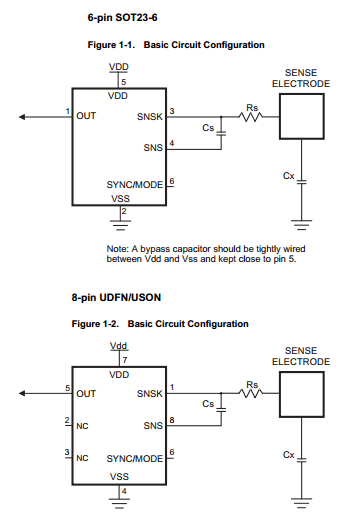

Pinout :
Description
The AT42QT1010 (QT1010) is a digital burst mode charge-transfer (QT) sensor that is capable of detecting near proximity or touch, making it idealfor implementing touch controls.
With the proper electrode and circuit design, the self-containeddigital IC will project a touch or proximity field to several centimeters through any dielectric like glass, plastic, stone, ceramic, and even most kinds of wood.
It can also turn small metal-bearing objects into intrinsic sensors, making them responsive to proximity or touch. This capability, coupled with its ability to self-calibrate, can lead to entirely new product concepts.
Datasheet PDF Download
Other datasheets in the file :
AT42QT1010,AT42QT1010-MAH,AT42QT1010-TSHR
