Part Number : AT27C010-15PI
Function : 1 Megabit 128K x 8 OTP CMOS EPROM
Package : DIP, PLCC 32 Pin Type
Manufacturer : ATMEL Corporation
AT27C010-15PI Pinout
Description
The AT27C010-15PI is a low-power, high performance 1,048,576 bit one-time program
mable read only memory (OTP EPROM) organized as 128K by 8 bits. They require
only one 5V power supply in normal read mode operation. Any byte can be accessed
in less than 45 ns, eliminating the need for speed reducing WAIT states on high per
formance microprocessor systems.
Two power versions are offered. In read mode, the AT27C010 typically consumes 25
mA while the AT27C010L requires only 8 mA. Standby mode supply current for both
parts is typically less than 10 µA.

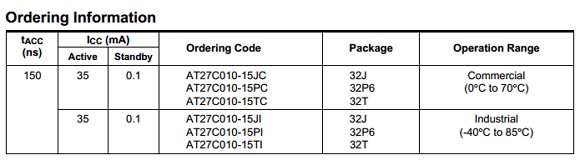

Order Information
Features
• Fast read access time – 45ns
• Low-power CMOS operation
– 100µA max standby
– 25mA max active at 5MHz
• Rapid programming algorithm – 100 µs/byte (typical)
• CMOS- and TTL-compatible inputs and outputs
• Integrated product identification code
• Industrial temperature range
• Green (Pb/halide-free) packaging option
AT27C010-15PI Datasheet
