Part Number : AN44067A
Function : 37V/2.5A Microstepping Motor Driver / 34 pin Plastic Small Outline Package With Heat Sink
Manufacturer : Panasonic Corporation

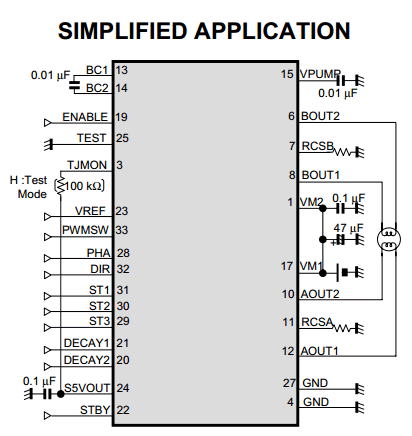

Pinout :
Description
AN44067A is a two channel H-bridge driver LSI. Bipolar stepping motor can be controlled by a single driver LSI.
2 phase excitation, half- step, 1-2 phase excitation, W1-2 phase excitation and 2W1-2 phase excitation can be selected.
Datasheet PDF Download
Other datasheets in the file :
AN44067A
