Part Number : AD8231-EP
Function : Zero Drift, Digitally Programmable Instrumentation Amplifier
Manufacturer : Analog Devices

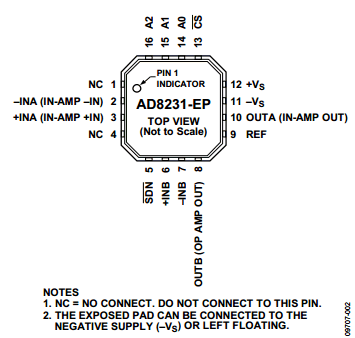

Pinout :
Description
The AD8231-EP is a low drift, rail-to-rail, instrumentation amplifier with software-programmable gains of 1, 2, 4, 8, 16, 32, 64, or 128. The gains are programmed via digital logic or pin strapping.
The AD8231-EP is ideal for applications that require precision performance over a wide temperature range, such as industrial temperature sensing and data logging. Because the gain setting resistors are internal, maximum gain drift is only 10 ppm/°C for gains of 1 to 32. Because of the auto-zero input stage, maximum input offset is 15 μV and maximum input offset drift is just 50 nV/°C. CMRR is 80 dB for G = 1, increasing to 110 dB at higher gains.
FEATURES
* Digitally/pin-programmable gain
– G = 1, 2, 4, 8, 16, 32, 64, or 128
* Specified from −55°C to +125°C
– 50 nV/°C maximum input offset drift
– 10 ppm/°C maximum gain drift
* Excellent dc performance
– 80 dB minimum CMR, G = 1
– 15 μV maximum input offset voltage
– 500 pA maximum bias current
– 0.7 μV p-p noise (0.1 Hz to 10 Hz)
* Good ac performance
– 2.7 MHz bandwidth, G = 1
– 1.1 V/μs slew rate
* Rail-to-rail output
* Shutdown/multiplex
* Extra op amp
* Single-supply range: 3 V to 6 V
* Dual-supply range: ±1.5 V to ±3 V
ENHANCED PRODUCT FEATURES
* Supports defense and aerospace applications (AQECstandard)
* Military temperature range (−55°C to +125°C)
* Controlled manufacturing baseline
* One assembly/test site
* One fabrication site
* Enhanced product change notification
* Qualification data available on request
